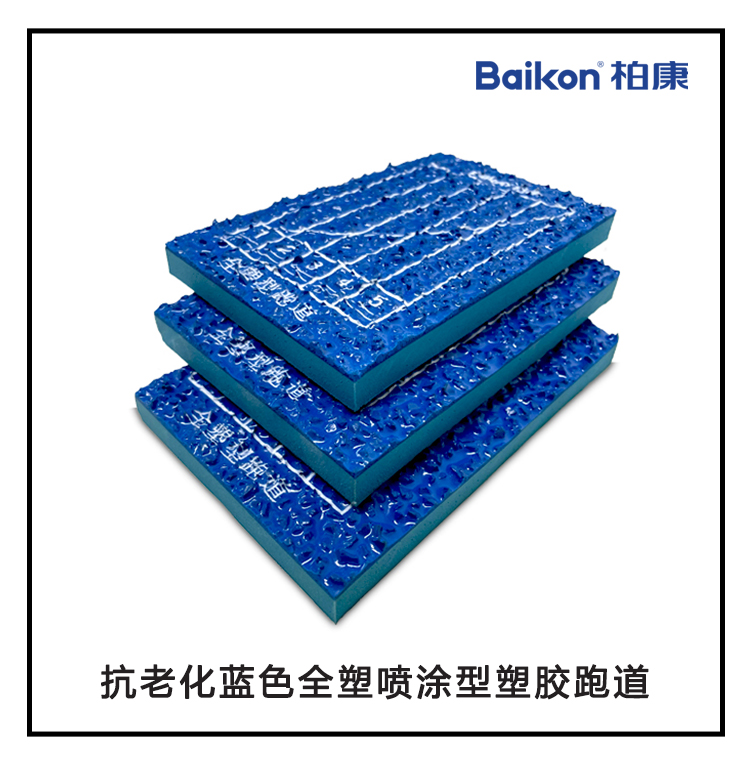

Innovative product: Anti-aging blue running track

The world's first anti-aging blue plastic running track - solves the pain points of fading, discoloration, and rapid aging currently existing in the industry. At the same time, it helps users reduce visual fatigue during running, keep calm, and stimulate users' imagination about technology.

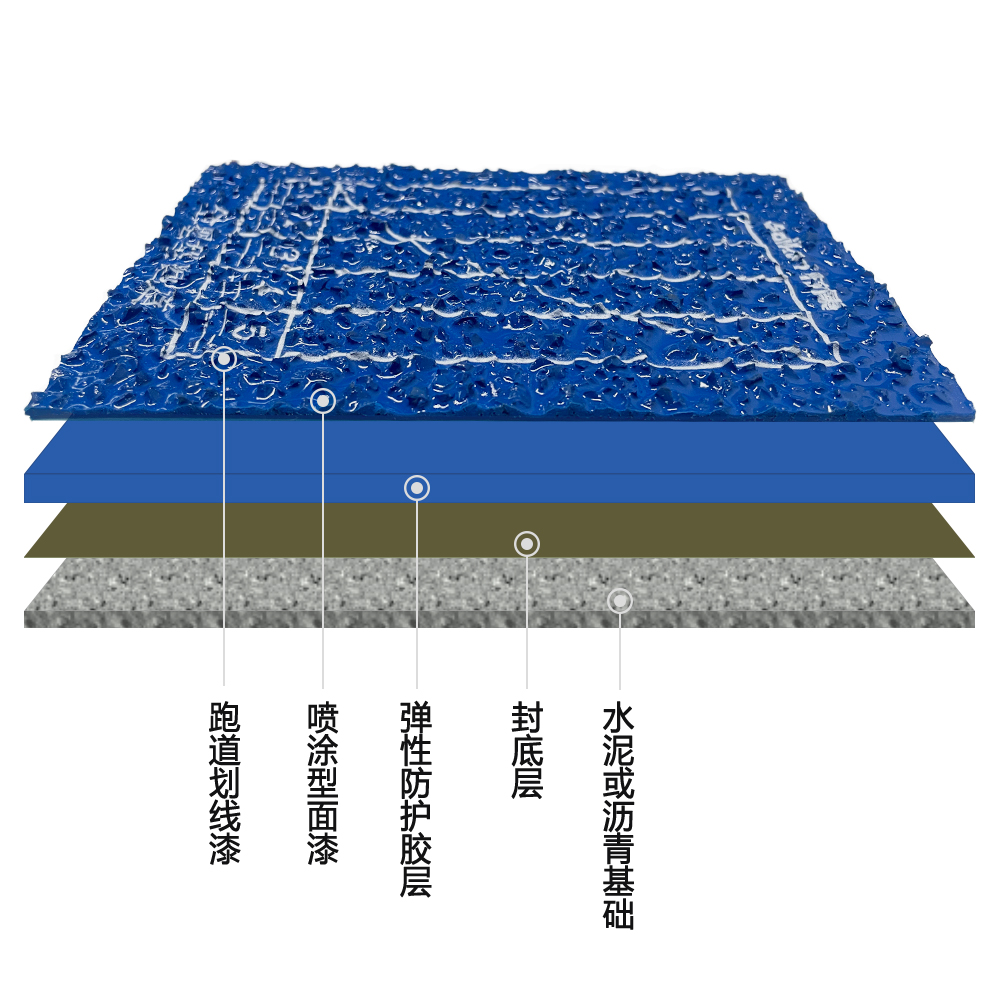

Structural diagram
ABUIABACGAAg-tPahwYowOufiQMw1Ac4sAQ
Product parameters





Shock absorption

35~50

Qualified

Vertical deformation

1.7

Qualified
Skid resistance value (20℃) BPN

49

Qualified

Tensile strength

0.90Qualified

Elongation at break

151Qualified

Flame retardancy/Class

Class 1

Qualified
Physical Performance
Physical Properties


Inspection items

Inspection results

Single - item evaluation

Impact absorption

35~50

Qualified

Vertical deformation

1.7

Qualified

Skid resistance value (20℃) BPN

49

Qualified

Tensile strength

0.90Qualified

Elongation at break

151Qualified

Flame retardant/Grade

Grade 1

Qualified





Shock absorption

35~50

Qualified

Vertical deformation

1.7

Qualified
Skid resistance value (20℃) BPN

49

Qualified

Tensile strength

0.90Qualified

Elongation at break

151Qualified

Flame retardant/Grade

Grade 1

Qualified
Chemical performance
Chemical properties


Sum of 3 phthalate compounds (DBP, BBP, DEHP) (g/kg): Not detected

Short-chain chlorinated paraffins (g/kg):Not detected

Benzene: Not detected

Sum of 3 phthalate compounds (DNOP, DINP, DIDP) (g/kg): Not detected

Formaldehyde: 0.2

Soluble lead: Not detected

Sum of free toluene diisocyanate (TDI) and free hexamethylene diisocyanate (HDI) (g/kg): Not detected

Benzo[a]pyrene (mg/kg): Not detectedSoluble chromium: Not detected

Free diphenylmethane diisocyanate (MDI) (g/kg): Not detected

Total volatile organic compounds (TVOC) ≤ 5.0

Soluble chromium: Not detected

Sum of 18 polycyclic aromatic hydrocarbons (mg/kg): Not detected

Sum of toluene, xylene and ethylbenzene: Not detected

Soluble mercury: Not detected

4,4‘-diamino-3,3’-dichlorodiphenylmethane (MOCA) (g/kg)

Odor grade ≤ Grade 3

Carbon disulfide: Not detected
Anti - aging blueAdvantages of plastic runways
Bokang blue runway combines a triple composite defense system

First layer: UV-Reflex nanocrystalline film

▶ Through the directional arrangement of titanium dioxide/zinc oxide heterogeneous crystals, light energy is converted into thermal energy for diffusion rather than absorption.

Second layer: Color-Lock color chain stabilization technology

▶ Organic-inorganic hybrid pigments are bonded to the runway substrate, forming a covalent bond network between molecules to resist acid-base corrosion and oxidative chain scission.

Third layer: ElasticArmor elastic armor layer

▶ Microporous gradient structure + self-healing elastomer. The heating expansion and contraction rate is less than 1% after heating at 80 degrees Celsius for 168 hours, preventing permeable fading caused by cracks.
Construction steps
1. Basic treatment
Treat the cement or asphalt foundation according to the construction guidance. After the treatment, the foundation strength shall reach the strength of building concrete standard C25.
2. Roll - coat the waterproof primer
Directly roll - coat the waterproof primer on the base surface with a roller.
3. Lay the base adhesive
Lay the base adhesive after uniformly mixing the A and B components of the base adhesive according to the thickness required by the construction drawing.
4. Spray the surface adhesive layer
After uniformly mixing the A and B components of the top - coat paint in proportion, pour the slurry into a professional sprayer for spraying.
5. Measurement and positioning
Conduct construction - related measurements based on the requirements of the process line and complete the positioning in all aspects.
6. Spray the marking linesSpray paint for marking lines according to the "three - gun method", or use a runway marking machine for marking.

Applicable places
School Sports Field
——————————
School Playground
Gymnasium
—————————
Gymnasium
Residential Area
——————————
Residential Quarters
Trail/Greenway
—————————
Walkway/Greenway
