Innovative Product: Anti-Aging Blue Running Track

•
The world's first anti-aging blue plastic running track
•
Addresses industry pain points: fading, discoloration, and rapid aging
•
Reduces visual fatigue during running
•
Helps maintain a calm state of mind
•
Inspires imagination about technological innovation

Key Features:

Utilizes advanced material technology to ensure long-term color stability and durability, redefining the performance standards of running tracks.

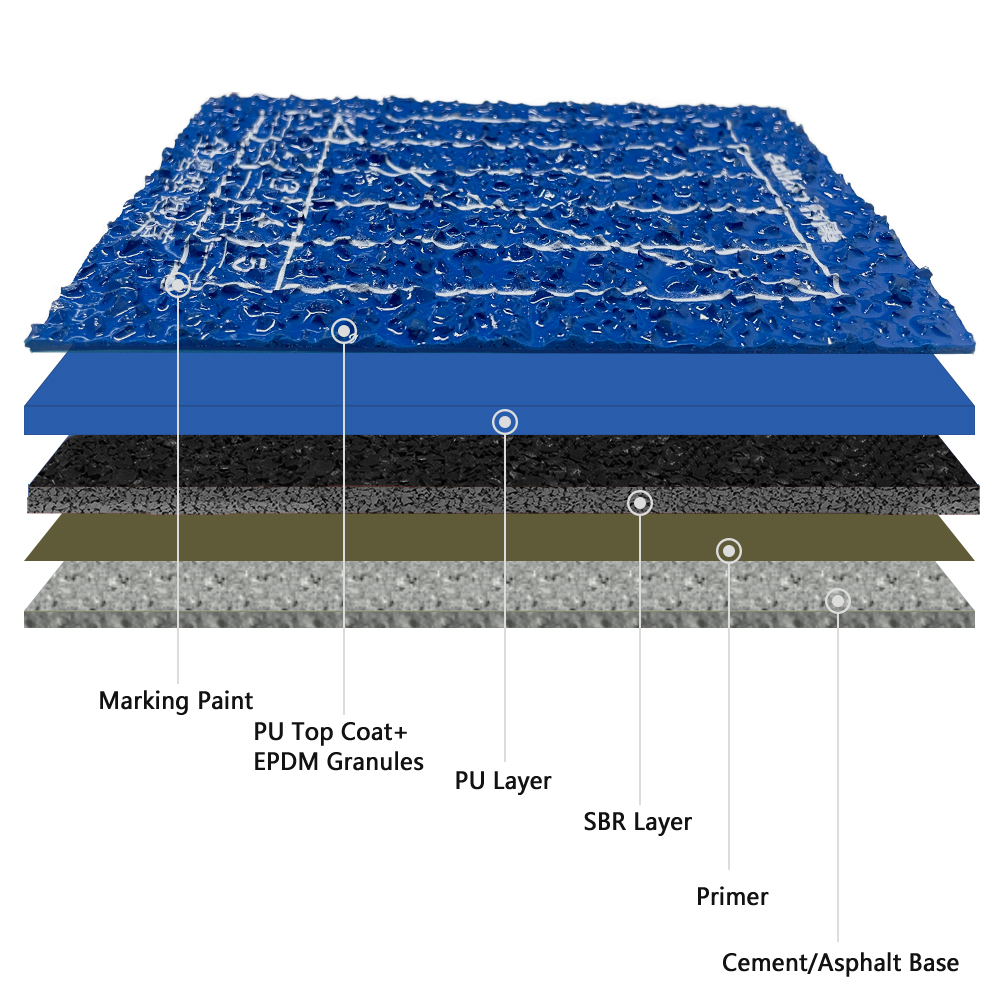

STRUCTURAL DRAWING

PRODUCT PARAMETERS


冲击吸收	35~50	合格
垂直变形	1.7	合格
抗滑值（20℃）BPN	49	合格
拉伸强度	0.90	合格
拉断伸长率	151	合格
阻燃/级	1级	合格

Physical Properties

Test Item	Test Result	Evaluation
Shock Absorption	35~50	Pass
Vertical Deformation	1.7	Pass
Slip Resistance (20℃)	49	Pass
Tensile Strength	0.90	Pass
Elongation at Break	151	Pass
Flame Resistance	Class 1	Pass

Test Item	Test Result	Evaluation
Shock Absorption	35~50	Pass
Vertical Deformation	1.7	Pass
Slip Resistance (20℃)	49	Pass
Tensile Strength	0.90	Pass
Elongation at Break	151	Pass
Flame Resistance	Class 1	Pass


冲击吸收	35~50	合格
垂直变形	1.7	合格
抗滑值（20℃）BPN	49	合格
拉伸强度	0.90	合格
拉断伸长率	151	合格
阻燃/级	1级	合格

Chemical properties

3 Phthalates (DBP, BBP, DEHP) Total（g/kg）：Not Detected	Short-chain Chlorinated Paraffins（g/kg）：Not Detected	Benzene：Not Detected
3 Phthalates (DNOP, DINP, DIDP) Total（g/kg）：Not Detected	Formaldehyde：0.2	Soluble Lead：Not Detected
Free TDI and HDI Total（g/kg）：Not Detected	Benzo[a]pyrene（mg/kg）：Not Detected	Soluble Chromium：Not Detected
Free MDI（g/kg）：Not Detected	Total Volatile Organic Compounds（TVOC）≤5.0	Soluble Chromium：Not Detected
18 Polycyclic Aromatic Hydrocarbons Total（mg/kg）：Not Detected	Toluene, Xylene and Ethylbenzene Total：Not Detected	Soluble Mercury：Not Detected
4,4′-Diamino-3,3′-dichlorodiphenylmethane（MOCA）（g/kg）：Not Detected	Odor Level≤ 3	Carbon Disulfide：Not Detected

3 Phthalates (DBP, BBP, DEHP) Total（g/kg）：Not Detected	Short-chain Chlorinated Paraffins（g/kg）：Not Detected	Benzene：Not Detected
3 Phthalates (DNOP, DINP, DIDP) Total（g/kg）：Not Detected	Formaldehyde：0.2	Soluble Lead：Not Detected
Free TDI and HDI Total（g/kg）：Not Detected	Benzo[a]pyrene（mg/kg）：Not Detected	Soluble Chromium：Not Detected
Free MDI（g/kg）：Not Detected	Total Volatile Organic Compounds（TVOC）≤5.0	Soluble Chromium：Not Detected
18 Polycyclic Aromatic Hydrocarbons Total（mg/kg）：Not Detected	Toluene, Xylene and Ethylbenzene Total：Not Detected	Soluble Mercury：Not Detected
4,4′-Diamino-3,3′-dichlorodiphenylmethane（MOCA）（g/kg）：Not Detected	Odor Level≤ 3	Carbon Disulfide：Not Detected

ADVANTAGES OF ANTI-AGING BLUE PLASTIC RUNNING TRACK

Three-Layer Anti-Aging Protection System of Blue Running Track

Layer 1: UV-Reflex Nano Crystal Film

●Directional arrangement of TiO₂/ZnO heterostructure crystals converts light energy into heat dissipation instead of absorption

Layer 2: Color-Lock Technology

●Organic-inorganic hybrid pigments bond with track substrate to form covalent bond network, resisting acid-alkali corrosion and oxidative chain scission

Layer 3: ElasticArmor Layer

●Micro-porous gradient structure with self-healing elastomer maintains <1% expansion rate after 168h at 80°C, preventing crack-induced fading

CONSTRUCTION STEPS

1. Base Preparation

•Prepare concrete/asphalt base to achieve C25 strength standard

2. Waterproof Primer Application

•Apply waterproof primer directly onto base with roller

3. Base Layer Installation

•Install mixed AB material of base layer according to thickness requirements in construction drawings

4. Surface Layer Spraying

•Spray mixed AB material of surface layer using professional spraying equipment

5. Measurement & Positioning

•Conduct construction measurement and positioning according to process line requirements

6. Line Marking

•Apply line marking using "three-gun" spraying method or professional track marking machine

 Key Technical Notes

•All materials must be precisely mixed according to proportions

•Base strength compliance is prerequisite for quality assurance

•Professional tools ensure construction accuracy and efficiency

APPLICATION PLACES

School Playground

—————————

Gymnasium

—————————

Residential Quarters—————————

Walkway/Greenway

—————————
